Accurate at Every Corner: Corner Load Error Compensation in PN Series Electronic Balances
In real-world use, many users notice something puzzling: the balance reads perfectly when the sample is placed at the center of the pan, but the reading "drifts" when the same sample is moved toward a corner. This is corner load error — a fundamental challenge that every high-precision electronic balance must overcome.
Where Corner Load Error Comes From

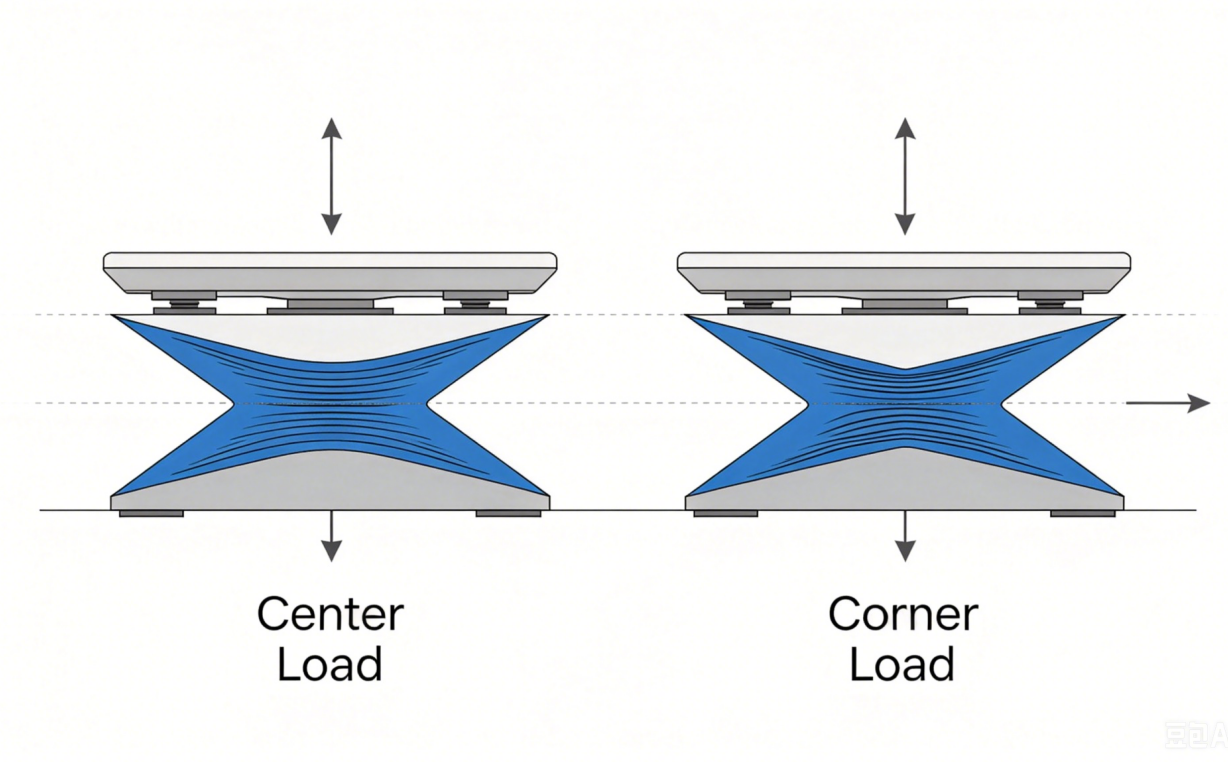

The root cause lies in uneven force distribution across the load cell. When a load is placed off-center, different regions of the elastic body deform unequally, causing the strain gauge output to differ from a center-loaded measurement. Minor variations in strain gauge placement and sensitivity dispersion across multiple sensing elements further amplify the error.
For a balance with 0.01g readability, even a corner error of a few hundredths of a gram can compromise measurement reliability — especially in pharmaceutical, jewelry, and laboratory applications where every digit matters.
Our Approach: Structural Optimization + Software Compensation
On the mechanical side, PN series balances feature a symmetrically designed load cell structure. Through finite element analysis (FEA) optimization, the flexure geometry ensures that force is transmitted uniformly to the sensing region regardless of where the load sits on the pan — minimizing corner error at the source.

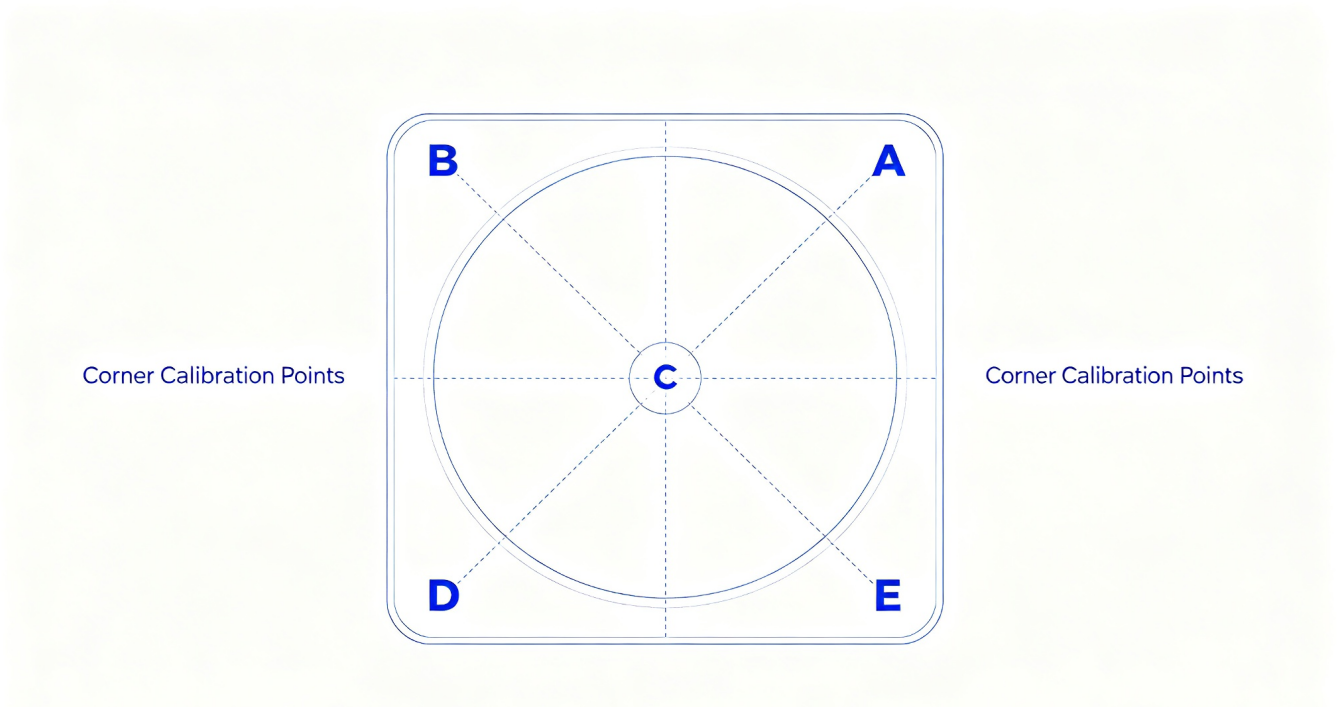

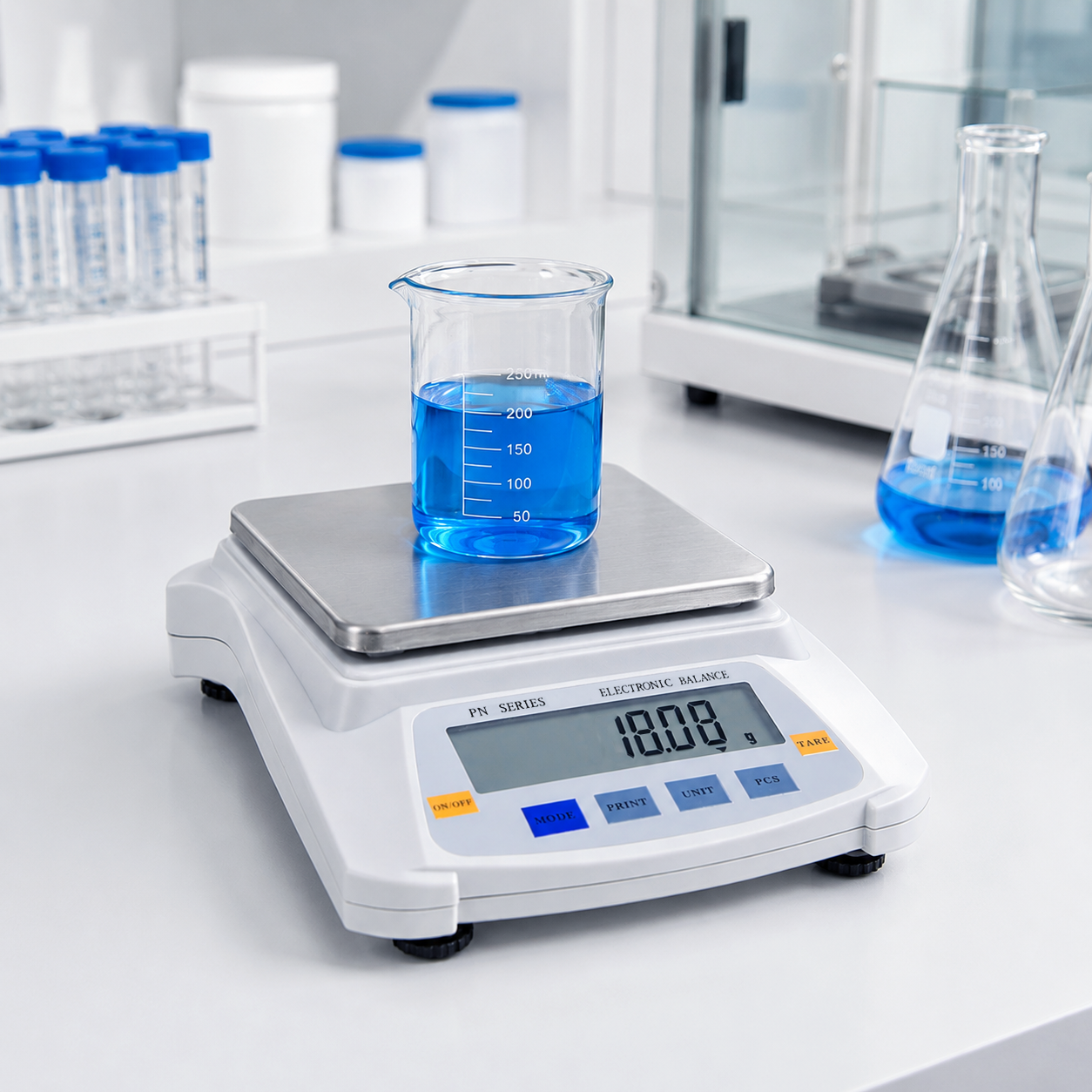

On the software side, we employ a multi-point corner calibration algorithm. Before shipment, each balance is calibrated at five positions across the 155 × 146 mm square weighing pan — the center plus four corners — building a position-to-error correction matrix. During operation, the instrument dynamically computes and applies the appropriate offset correction based on load distribution.
Proven Performance on the DJ Series
| Parameter | Specification |
|---|---|
| Models (0.01g) | PN1502A / PN2202A / PN3202A / PN5202A |
| Capacity | 1500g / 2200g / 3200g / 5200g |
| Readability | 0.01g |
| Weighing pan | 155 × 146 mm, square stainless steel |
| Corner load error | ±0.02g (any position on pan) |
| Stabilization time | ≤ 1 second |
Whether you're weighing powders in a lab, counting small parts on the factory floor, or measuring precious metals in a jewelry workshop, the PN series delivers consistent, reliable readings — no need to carefully center every sample.
Conclusion
Corner load compensation is not a simple "software tweak" — it is a system-level discipline spanning mechanical design, sensor fabrication, and calibration algorithms. By reducing error at the source and refining the rest through software, we ensure that every DJ series balance gives you trustworthy results at every corner of the pan.
